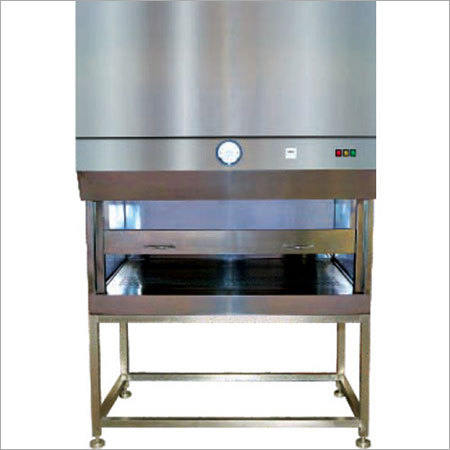

Bio-Safety Cabinet

Bio-Safety Cabinet
Bio-Safety Cabinet
Product Code : 07
Product Description

Being a client-centric organization, we are offering an exclusive range of Bio-Safety Cabinet to all the valued customers. The offered range is made by using the top grade quality raw material, which is procured from the reliable vendors. Our products are highly s used in various bio-tech and microbiology laboratories. The features of Bio-Safety Cabinet are Compact design, Requires minimum maintenance, Optimum functionality, on-time delivery, reasonable rate and much more.

Technical Specification :

Model

Working Area (mm)

Airflow Velocity (Down Flow)

Air Cleanliness

Air Flow

BSC-36-24-24

915x610x610

0.45+ 0.05mps/90(fpm)

ISO Class 5 (ISO 14644-1:1999(E) / Class 100(U.S. FED STD 209 E)

Vertical- Recirculatory

BSC-48-24-24

1220x610x610


Supply Filter

Imported Minipleat HEPA filter with hot melt technology. which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.99%} fer 0.3μ

Exhaust HEPA

Imported Minpleat HEPA filter with hot melt technology, which conforms to EU-14 Grade at exhaust position with an efficiency rating better than 99.999% for 0.3μ

Pre-Filter

Per-Filter are made from Non-Woven Synthetic with HDPE mesh; conforms to EU 6 Grade, which an efficiency rating better than 95% down to 5μ

Motor blower assembly

Motor blower designed cf statically and dynamically balanced fer supply of sufficient capacity and static pressure to take care of airflow requirement for entire life at HEPA.

Differential Pressure gauge

Dwyer Make Magnehelic Gauge (0-25 mm: 2 Nos)to monitor pressure door across HEPA filter & work area with respect to ambient

Lighting

Fluorescent Light (250Lux) at work surface

ON/OFF Switches

SS ON/OFF Switches for motor & lights

SS 304 work table

SS 304 work table with Perforations at front & back which can be removed occasionally for cleaning purpose

Front Door

1-piece full openable sliding toughened glass with counterweight arrangement

Door Opening Alarm

Alarm triggers in case front door is raised more than 8” (i.e. safe clear door opening during operation)

Exhaust Duct

SS 304 1 ft long elbow duct for exhaust

Side Panels

Double walled flushed Glass Side Panels

Electrical Supply

230V AC 1-50ØHZ / 415 AC 3-Ø50HZ

Noise Level

Less than 67dB on Scale 'A' when Ambient is not greater than 55dB on Scale 'A'

Vibration Level

Minimum

Other Details:

  • SS 304 Cock for Gas and Air
  • Foldable polycarbonate front door
  • Audio Visual Alarm
  • Clean down timer with operation hold indicator
  • VFD based control systems
  • Photohelic guage
  • Sodium vapor lamps
  • Flame proof fitting
  • Safe change Bag in / Bag out arrangement for filte
  • Front door with gloves and glove port arrangement
  • Transfer hatch for material movement
  • PLC based control system.
