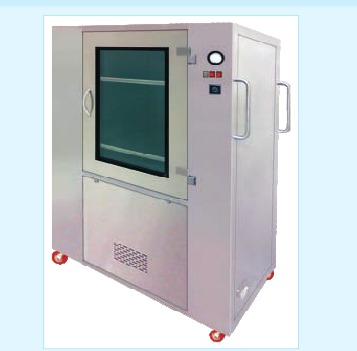

Mobile Trolley is designed for transporting sterile products under ISO Class 5 (Class 100) particle free work area for storing sterile products to meet storage needs while making a positive contribution to maintaining the cleanliness of your controlled cleanroom environment.
The work area is continuously supplied with positive pressure HEPA filtered recirculated vertical / horizontal air flow. Our range of mobile trolley cabinet is available in various specifications as per the client’s requirements.
Mobile Trolleyis with a variety of standard dimensions also our Mobile Trolley can be custom engineered to any size. Mobile Trolley is available in powder coated Mild Steel, SS 304 / 316 / 316L or a combination of both.
Standard Model Available :
| Model No. || Work Area (mm) || Airflow Velocity |
| Air Cleanliness || Air Flow |
| MT-24-24-24 || 610 X 610 X 610 || 0.45±0.05mps/ || ISO Class 5 (ISO 14644-1:1999 (E)) / || Horizontal – |
| MT-24-24-36 || 610 X 610 X 915 || 90(fpm) || Class 100 (U.S. FED STD 209 E) || | Technical Specification :
| Supply filter : || Imported Minipleat HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.999% down to 0.3µ. |
| Return |
Air Pre-filter :
| Return Air Pre-filter are made from non-woven synthetic with HDPE mesh; conforms to EU 6 grade, with an efficiency rating better than 95% down to 5µ. |
| Fresh |
Air Filter :
| Fresh Air Pre-filter are made from non-woven synthetic with HDPE mesh; conforms to EU 4 Grade, with an efficiency rating better than 90% down to 10µ. |
| Motor |
Alower Assembly :
| Motor blower designed of statically and dynamically balanced for supply of sufficient capacity and static pressure to take care of airflow requirement for entire life of HEPA. |
| Differential Pressure Gauge : || Dwyer Make Magnehelic Gauge (0 -25 mm: 1 No.) to monitor pressure drop across HEPA. |
| Door : || SS 304 double walled door construction with flush glass view panels with SS handles and SS hinges. |
| Interlocking : || Electro-Magnetic interlocking arrangement to put-off UV Light if either side door opens. |
| Shelves : || SS 304 hanging arrangement (or) removable type shelves |
| Temperature Control : || Heater with thermostat for control of temperature in cabinet |
| Battery back-up : || Battery back-up with inverter for 30 mins |
| Castrol wheel : || PU coated lockable castor wheels |
| ON/OFF Switches : || SS ON/OFF switches for motor & lights |
| Switch Socket : || 6/15 amp single-phase switch socket use for external equipment |
| DOP Port : || DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA filter integrity test. |
| Handle : || SS 304 Handle for mobility |
| Electrical Supply : || 230V AC 1- Ø 50HZ / 415V AC 3-Ø 50HZ |
| Noise Level : || Less than 67 dB on scale ‘A’ when ambient is not greater than 55 dB on scale ‘A’ |
| Vibration Level : || Minimum | Optional Accessories :
U.V. Light with Hour Meter used for bacteria/virus killing & interlocking arrangement to put off UV Light if either side door opens.
Electro-Magnetic / Mechanical Interlocking
Audio visual alarm indicating condition of HEPA filters
Clean down timer with operation hold indicator
VFD based control systems
Photohelicguage / Digital pressure gauge to monitor of pressure drop across filter.
Flame proof fitting
