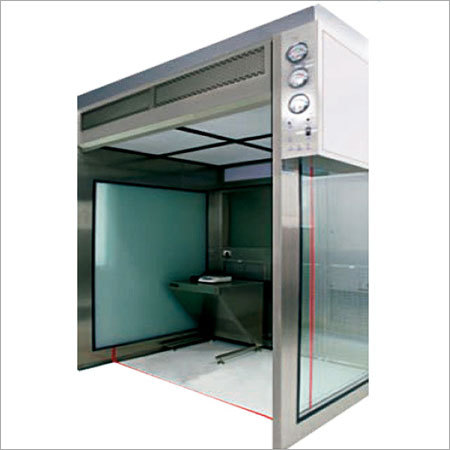

Reverse Laminar Air Flow

Reverse Laminar Air Flow
Reverse Laminar Air Flow
Product Code : 18
Product Description
The Klean Air Technologies company is a prominent Manufacturer and Supplier of Reverse Laminar Air Flow. We ensure that our products have the characteristics of optimum functionality and durable construction. To meet the diverse requirement of our valued patrons, we are offering the range of Reverse Laminar Air Flow in various Specifications. Furthermore, you can avail the offer at very reasonable price.

Features:
  • Compact design
  • Cost-effectiveness
  • Durable construction
  • Optimum performance

Technical Specification :

Model

Working Area (mm)

Airflow Velocity (Down Flow)

Air Cleanliness

Air Flow

RLAF-48-36

126x955x2170

0.45+ 0.05mps/90(fpm)

ISO Class 5 (ISO 14644-1:1999(E) / Class 100(U.S. FED STD 209 E)

Vertical- Recirculatory

RLAF-48-48

1275x1260x2170

RLAF-72-48

1875x1875x2170


Supply Filter

Imported Minipleat HEPA filter with hot melt technology. which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.99%} fer 0.3μ

Exhaust HEPA

Imported Minpleat HEPA filter with hot melt technology, which conforms to EU-14 Grade at exhaust position with an efficiency rating better than 99.999% for 0.3μ


Intermediate filter are made from Non-Woven Synthetic with HDPE mesh; conforms to EU 7 Grade, with an efficiency rating Better than 95% down to 3μ

Pre-Filter

Per-Filter are made from Non-Woven Synthetic with HDPE mesh; conforms to EU 4 Grade, with an efficiency rating better than 90% down to 10μ

Motor blower assembly

Motor blower designed cf statically and dynamically balanced fer supply of sufficient capacity and static pressure to take care of airflow requirement for entire life at HEPA.

Differential Pressure gauge

Dwyer Make Magnehelic Gauge (0-25 mm: 2 Nos)to monitor pressure door across HEPA & Intermediate filter and (0-10 nn 1 No.) Across perfilter.

Lighting

Fluorescent Light (250 Lux) at work surface

ON/OFF Switches

SS ON/OFF Switches for motor & lights

Switch Socket

6/15 amp single-phase switch socket use for external equipment

Control Panel

Electrical control panel mounted on the side panel of the unit.

DOP Port

DOP test port at upstream of HEPA filter integrity test. (With PAO Solution)

Side Panels

Double walled flushed Glass Side Panels

Electrical Supply

230V AC 1-50ØHZ / 415 AC 3-Ø50HZ

Noise Level

Less than 67dB on Scale 'A' when Ambient is not greater than 55dB on Scale 'A'

Vibration Level

Minimum

Optional Accessories:

  • Anti-static PVC strip overlapping curtains
  • Audio visual alarm indicating condition of HEPA filters
  • Clean down timer with operation hold indicator
  • VFD based control systems
  • Photohelic guage / Digital pressure gauge to monitor of pressure drop across filter.
  • Sodium vapor lamps
  • Flame proof fitting
